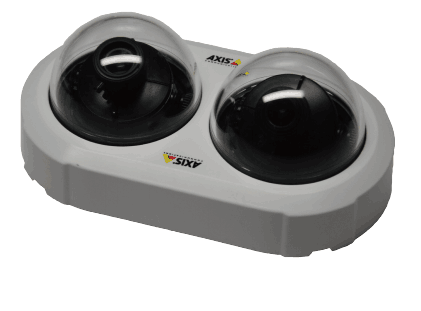

AXIS P3705-Z dual camera HD network camera

Dual camera network camera, each camera provides HDTV, 1080P high-definition images, and can be flexible positioning, automatic day and night conversion function, providing voice and I/O interface, PoE power supply and AC/DC power supply.

AXIS P3705-Z network camera
High efficiency HD webcam with dual cameras
AXIS P3705-Z network camera, equipped with dual cameras, supports full frame, 2 way 1080p HD video stream. AXIS P3705-Z network
The video camera not only supports the simultaneous capture and display of double picture video streams, but also provides a video viewfinder mode for each camera
Enables you to separately optimize the resolution or frame rate of the two scenes. Each camera support axis to find the light, the camera has
Excellent light sensitivity. AXIS P3705-Z network cameras are very cost effective. Two cameras, just one network cable, simpler
Single installation and maintenance is the ideal choice for high efficiency and high quality monitoring.
> a video camera, an IP address, and two sensors
> two can be flexibly positioned, independently set the camera
Light seeking technology
An Zipstream Zipstream Zipstream.
> bidirectional audio, I/O, local power
> double screen splicing display
AXIS P3705-Z network camera
Video camera
The image sensor is scanned RGB CMOS 2 x 1/2.8 by line by line"
Lens, every shot:
Manual zoom lens 2.8 - 6 mm, F2.0
The horizontal angle is 100 degrees - 53 degrees
Vertical viewing angle 73 degrees - 40 degrees
An infrared cut-off filter that can be removed automatically day and night
Minimum illumination color: 0.15 lux, F2.0, black / White: 0.04 lux, F2.0
The shutter time is 1/142850 seconds to 2 seconds
Translate / tilt / Zoom each camera:
Horizontal rotation + 178 degrees, vertical rotation + 60 degrees, rotating + 178 degrees
video
Video compression H.264, Baseline, Main, and High Profile (MPEG-4 Part)
10/AVC)
Motion JPEG
Resolution per camera: 1920x1080 to 160x90
Double screen stitching: 1600X600
The frame rate is 1080p:25/30 FPS and the local power frequency is 50/60 Hz
720p:25/30 FPS, local power frequency 50/60 Hz
Double screen stitching: 25/30 FPS, local power frequency 50/60 Hz
Video streams can be configured separately for H.264 and Motion JPEG video streams
Controllable frame rates and bandwidths
Axis Zipstream (H.264 format)
VBR/MBR H.264
The image settings include compression rate, color, brightness, sharpness, contrast, white balance, and exposure control
System (including automatic gain control), exposure area, backlight compensation, not in
Under different illumination level, contrast and local fine-tuning behavior of text and image stack
Add images, images, privacy masks
Each camera can rotate angle: 0 degrees, 90 degrees, 180 degrees, 270 degrees,
Support corridor format
audio frequency
Audio stream bidirectional, full duplex
Audio compression, AAC-LC, 8/16, kHz, G.711, PCM, 8, kHz, G.726, ADPCM
8 kHz configurable bit rate
Audio input line input interface
Audio output line output interface
network
IP address, an IP address
Secure password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa
Network access control, digest authentication, user access logs, and centralized
Certificate management
Supported protocols IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS, Layer
3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour,
UPnPTM, SNMP, v1/v2c/v3 (MIB-II), DNS, DynDNS,
NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP,
RTCP, ICMP, DHCP, ARP, SOCKS, SSH
system integration
Application programming
Interface
Open API for software integration, including VAPIX, and
Axis camera application platform, specification: www.axis.com.
ONVIF Profile S, canonical URL: www.onvif.org
Intelligent analysis, video mobile detection, active tamper proofing alarm
Audio detection
Support digital automatic tracking, mobile detection 3, line detection
Function (ACAP) and support for third party applications, please visit
Www.axis.com/acap
Event triggered intelligence analysis, front-end storage events, external input
Event action external output
File upload: FTP, SFTP, HTTP, HTTPS, network sharing, and
E-mail
Notification: email, HTTP, HTTPS, TCP, and SNMP trap themselves
Video recording to front end storage
Video buffer before alarm and after alarm
Send video clips
Superimposed text
Data flow event data
Built in help pixel counter
routine
Memory 1, GB, RAM, 256 MB flash memory
Power 12V, DC, 24V, AC
Ethernet power supply meets IEEE 802.3af Class 2 standard
Max 5 W
Interface RJ45, 10BASE-T/100BASE-TX, PoE interface, *1
12V DC / 24V AC power interface *1
Audio input terminal *1, audio output terminal *1
I/O terminal *1 (containing 2 configurable inputs / outputs)
Storage support microSD/microSDHC/microSDXC card
For more information about SD card, please visit www.axis.com
Working conditions - 10 C to 55 degrees C
Humidity 10-85% relative humidity (without condensation)
Type approval inspection report of the Ministry of public security
Sizes 162 x, 91 x, 61.5 mm
Weight 275 grams
