產品展示

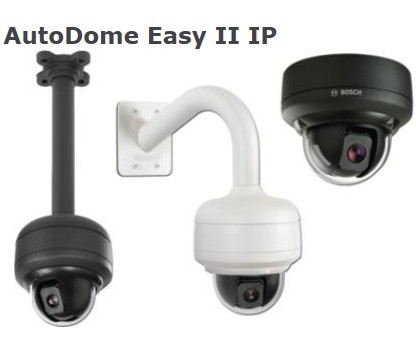

博世VEZ-211-IWCEIVA室內標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），白色 10x 彩色 PAL 攝像機，配備透明球型罩
產品編號：VEZ-211-IWCEIVA
產品價格：￥
產品簡介：博世VEZ-211-IWCEIVA室內標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），白色 10x 彩色 PAL 攝像機，配備透明球型罩
博世VEZ-211-IWCEIVA室內標清IP高速球型攝像機 AutoDome Easy II IP（具有 IVA 功能），白色 10x 彩色 PAL 攝像機，配備透明球型罩
VEZ-211-IWCEIVA Indoor AutoDome Easy II IP with IVA Clear 10x Color PAL
在 4CIF/D1 和 CIF 清晰度下進行高質量 H.264 壓縮
三重視頻流功能生成三條獨立的 IP 視頻流（同步傳輸兩條 H.264 視頻流和一條 JPEG 視頻流）
符合 ONVIF 標準
嵌入式智能視頻分析 (IVA) 功能消除了專用 PC 和相關軟件維護（可選）的麻煩
結實耐用的防暴外殼和球型罩
精巧緊湊的結構便于在室內和室外場合進行隱蔽式監控，而且更加美觀
室內 AutoDome Easy II IP（具有 IVA 功能），白色 10x 彩色 PAL 攝像機，配備透明球型罩
可選標準，包括高性能的 H.264 和 JPEG
| Imager | 1/4 in. Exview HAD CCD |
| (752 x 582 PAL)/(768 x 494 NTSC) | |
| Lens | 10x Zoom (4.2–42.0 mm) (f/1.8) |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override (F1.8 to F2.9) |
| Field of View | Approx. 4.6° (TELE end) to 46° (Wide end) |
| Gain Control | AGC on/off (28dB max) |
| Synchronization | Internal/external |
| Aperture Correction | User adjustable |
| Horizontal Resolution | 530 TVL typical |
| Digital | 12x |
| Optical Zoom | 10x |
| Optical Zoom FOV | 4.6° to 46° |
| Sensitivity (typical) | 30 IRE |
| With Tinted Bubble* |
| SensUP Off | 0.83 lx |
| SensUP On (1/4) | 0.043 lx |
| *With optional clear bubble, approximately 0.6 F-stop improvement. | |
| SNR | 50 dB |
| White Balance | Auto, indoor, outdoor, 1 push |
| Standards | H.264 (ISO/IEC 14496?10), M?JPEG, JPEG |
| Streaming | Multiple, individually configurable streams in H.264 and JPEG,configurable frame rate and bandwidth |
| GOP Structure | I, IP, IPBB |
| Data Rate | 9.6 kbps to 6 Mbps |
| Resolutions and Frame Rates | |
| Name | NTSC |
| 4CIF/D1 | 704 x 480, 30 ips |
| CIF | 352 x 240, 30 ips |
| Overall IP delay | 240 ms |
| Frame rate | 1 to 50/60 (PAL/NTSC) |
| Network | |
| Protocols | RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP |
| Ethernet | 100 Base-TX, auto-sensing, half/full duplex, RJ45 |
| Power over Ethernet (Indoor models only) | IEEE 802.3af |
| Unit Configuration | Via Microsoft Internet Explorer 7.0 Web browser or higher, Divar XF, Vidos, or Configuration Manager |
| Software Update | Flash ROM, remote update |
| Weight | 1.3 kg (2.86 lb) |
| Pan Range | 0-360° continuous |
| Tilt Angle | 0-94° |
| Variable Speed | 0.1°/s-120°/s |
| Pre-position Speed | Pan:360°/s Tilt: 100°/s |
| Preset Accuracy | ± 0.1° typ. |
| Rated Voltage |
| Camera, Indoor | 24 VAC ± 10%, 50/60 Hz orPower over Ethernet (IEEE 802.3af Class 3) |
| Camera, Outdoor | 24 VAC ± 10%, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC ± 10%, 50/60 Hz |
| Power Draw: (typ.) | |
| Indoor Models | 12 W |
| Outdoor Models | Camera only: 12 WHeater only: 15 WTotal: 27 W |
| Operating Temp. | |
| Indoor Models | –10°C to 40°C (14°F to 104°F) |
| Outdoor Models | –30°C to 50°C (–22°F to 122°F) |
| Operation Humidity | 0% to 90% relative, non-condensing |
| Storage Temp. | –20°C to 60°C (–4°F to 140°F) |
| Environmental Rating | |
| Indoor Models | Rated for indoor use only |
| Outdoor Models | Rated for IP65 |
| Sectors/Titling | 8 independent sectors with 16-character titles/sector |
| Pre-positions | 99, each with 16-character titles |
| Guard Tours | Two (2) types of tours:?Recorded tours - two (2), total duration 15 minutes?Preset tour - one (1), consisting of up to 99 scenes, consecutively |
| Supported Languages | English, French, German, Spanish, Portuguese, Polish, Italian, Dutch, and Russian |
| Power | |
| PoE, Indoor Models | RJ-45 100 Base-TX Ethernet Power over Ethernet IEEE 802.3af Class 3 |
| Camera, All Models | 24 VAC, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC, 50/60 Hz |
| Video and Control | RJ-45 100 Base-TX Ethernet |
| Alarm Input (2) | NC/NO |
| Alarm Output | Open collector NPN32 VDC @ 150 mA max |
| Material | Cast aluminum |
| Color | White or Charcoal |
| Size (Diameter x Height) | 6.02 in. x 4.61 in.(153.0 mm x 133.0 mm), Cast aluminum |
| Bubble | 4.0 in. (10.2 cm), Polycarbonate |
