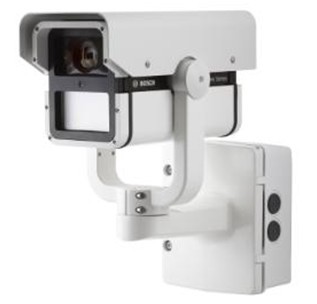

Bosch NEI-309V05-13WE Special IP Infrared Cameras, Has IVA Dinion 2X Imaging, 940 Nanometers, 3D Lighting Diffuser and Stability, PAL, White

Certified all-weather active infrared cameras, dedicated to perimeter monitoring and other low light outdoor applications
Dinion 2 x imaging, its wide dynamic capabilities can cope with the most demanding of lighting
Growing field lighting technology, in the low light and all black with eye-catching performances in the environment
Built-in cable box, remote control and external regulation function, can minimize the installation time and cost
Triple video streaming: transport both h. 264 video and a M - JPEG video streaming
Advanced smart technology
Accord with standard of ONVIF
PoE + (comply with the IEEE 802.3 at class 4
Rated voltage 12 VDC (+ / - 10%), 24 VAC (+ / - 10%), 50/60 Hz, PoE +
Power consumption
12 VDC 35 W (2.9 A)
24 VAC 35 W (1.5 A)
sensors
CCD type 1/3 inch interlaced transfer, WDR double shutter
Effective image pixels: PAL: 752 x 582 NTSC: 768 x 494
video
H. 264 video compression (ISO/IEC 14496-10); M - JPEG, JPEG
Data transfer rate of 9.6 Kbps to 6 Mbps
Vertical (PAL/NTSC resolution level x ips)
4 cif 704 x 576/480 25/30 (ips)
CIF 352 x 288/240 25/30 (ips)
Overall IP delay at least 120 milliseconds, up to 240 milliseconds
GOP structure I, IP
Frame rate 1 to 50/60 (PAL/NTSC) h. 2641 to 25/30 (PAL/NTSC) M - JPEG
Video output
Signal analog composite (NTSC or PAL), only suitable for using 4 with an on-screen menu
The connector BNC, 75 ohms
Horizontal resolution 540 TV lines
Video signal to noise ratio of 50 dB
4. The analog video output only when interacting with the camera screen menu is active. Please note that when the analog video output is active, will break the IP video output.
Reflectivity of 89% sensitivity (3200 K, scene, pro series)
All video (IRE (100) effective images (50 IRE ()
Color lx (fc) 0.223 2.4
Color 10 times improve sensitivity lx (fc) 0.0223 0.24
Black and white lx (fc) 0.091 0.98
Black and white 10 times improve sensitivity lx (fc) 0.0091 0.098
Black and white + infrared lighting 0 lx (fc) 0
The power supply
PoE + RJ 45-100 Base - TX Ethernet PoE + IEEE 802.3 ats, class 4
Image sensor 12 VDC / 24 VAC (+ / - 10%), 50/60 Hz
Simulation (video) PAL or NTSC BNC, suitable for used with on-screen menu only five
Video and control the STP, 10/100 base-t, adaptive, half duplex/full duplex, RJ45
Screen through the soft key operating screen menu (multilingual)
Alarm output relay VAC 30 or 40 + VDC, the largest 0.5 A continuous, 10 VA tamper: opening/closing, normally closed voltage relay
5. Analog video output only when interacting with the camera screen menu is active. Please note that when the analog video output is active, will break the IP video output.
Horizontal resolution 540 TV lines
SNR > 50 dB
Automatic shutter [1/60] (1/50 to 1/50) (optional) can choose automatic [1/60] (1/50 to 1/50) no stroboscopic, fixed pattern
Enhance sensitivity adjustable scope: close to 10 x
Day/night color, black and white, automatic video, automatic photoelectric element
Day/night light control electric element, it can adjust the day/night switch: 25 lux to 64 lux (the default value is 48 lux) adjustable switch night/day: 43 lux to 82 lux (the default value is 63 lux)
Black level automatically, shut down automatically and continuously
Dynamic engine XF, dynamic range, 2 x ultra dynamic range SmartBLC
120 dB dynamic range (20 bits image processing)
Dynamic noise reduction can choose, on/off automatically
Definition can select level of resolution enhancement
Smart backlight compensation (including 2 x the dynamic range), open/close
Automatic gain control can choose to open or close AGC (0 to 30 dB)
White peak inhibition on/off
The white balance ATW, ATWhold and manual (2500-10000 k)
Alarm output VMD or special D/N and tamper design (applicable to cable box)
Cable compensation without external amplifier up to 1000 meters (3000 feet) coaxial cable (a combination of Bilinx coaxial cable communications, automatically setting)
The camera ID 17 characters can edit field, optional position
Test generator color bar 100%, gray-scale step 11, sawtooth 2 h, checker plate, cross hatching, UV plane
50 mm infrared calibration manual zoom lens 5 - automatic aperture
Field of view Angle (vertical level x) 5 mm FOV: 5
