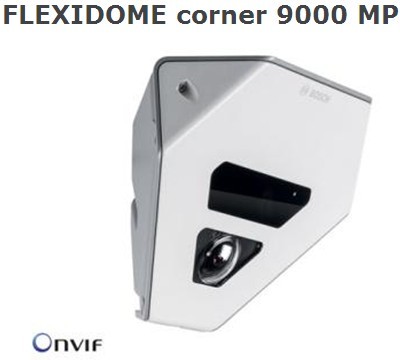

Bosch NCN-90022-F1 Special Integrated Infrared IP Camera Corner Installation, Without Handle,1440x1080p，F(xiàn)LEXIDOME corner 9000MP

Corner installation, design provides maximum security without handle
1.5 MP resolution with clear images
To view, including area just below the small room
940 nm infrared lamp with 9 meters (30 feet) concealment type of night vision
IP65 waterproof
The input voltage + 12 VDC / 24 VAC or Ethernet power supply (rated 48 VDC)
Maximum power consumption 8.4 W (12 VDC, PoE) maximum 10.8 VA (+ 24 VAC)
PoE IEEE 802.3 af (802.3 at type 1) level of power: 3 classes
1/2.7 of an inch CMOS sensor type
1440 x 1080 resolution
Color sensitivity: 0.3 lx black and white: 0.0 lx (open lamp)
69 dB dynamic range
Truly automatic dual-use, color, black and white and day and night
The shutter speed automatic electronic shutter (AES) fixed 1/30 to 1/15000 (1/25)
Standard definition video resolution VGA, QVGA
H. 264 video compression MP (Main Profile); M - JPEG
Frame rate of 30 biggest ips (M - JPEG frame rate may vary from system to system load)
Video set video watermarking, alarm mode tags, mirror image, image rollovers, contrast, saturation, brightness, white balance, level of resolution, contrast enhancement, backlight compensation, privacy shelter, motion detecting, tamper alarm, vertical mode, pixel counter
Infrared LED three LED, 940 nm
Infrared covers 9 meters (30 feet)
The lens type stationary 2.0 mm, F2.0
Lens plate installation
The level of field of 121 °
Vertical field of 91 °
Analog video output (only applicable to install) 2.5 mm socket connector (1 Vpp CVBS, NTSC)
Alarm input 0 to 3.3 VDC, the low level
Alarm output 60 VDC or 60 VAC (maximum), load current: 1 A (maximum)
3.5 3.5 mm mono audio input circuit input connector Vrms, 20 k ohm resistance (typical)
Audio output circuit output 3.5 mm mono connector 0.707 Vrms, 10 k ohm resistance (typical)
Two-way audio communication, full duplex
AAC audio compression, g. 711, L16 (live and recording)
Internal RAM 10 seconds before the alarm video
MicroSDHC memory card slot up support 32 GB / 2 TB microSDXC card. (it is recommended to use class 6 or higher category of SD card for high-definition video)
Continuous recording video, video loop. Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocol IPv4 and IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2 / V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, and DHCP, SNTP, SNMP (V1, MIB ? II), 802.1 x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication.
Encryption, SSL, TLS 1.0 DES, 3 DES, AES (optional)
10/100 base-t Ethernet, automatic detection, half duplex/full duplex
Ethernet RJ45 connector
Connect the ONVIF Profile S, Auto - MDIX
Size (width x height) x 240 x 146 x 146 mm (9.45 x 5.75 x 6.65 inches)
Weighing about 1840 grams (4.06 pounds)
Working temperature - 10 DHS C to + 50 DHS C (14 DHS F to + 122 DHS F)
Storage temperature - 30 DHS C to + 60 DHS C (22 - DHS F to + 140 DHS F)
Humidity 20% to 20% relative humidity (no condensation)
